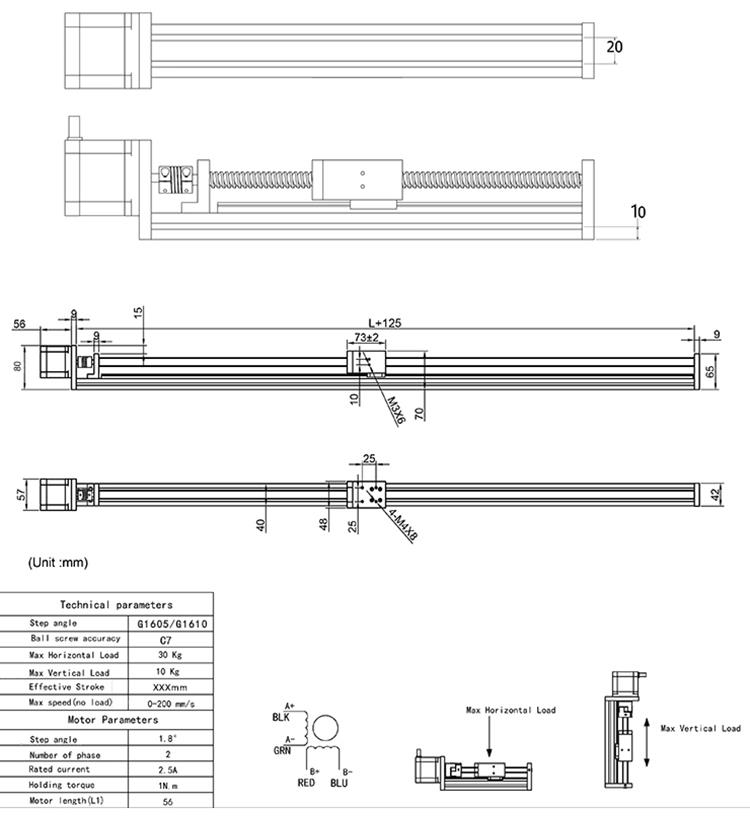

Mechanical Dimensions
Effective Stroke L(mm) | 100~1000 |
| Overall Length (mm) | L+199 |
| Overall Height (mm) | 80 |
Detail Picture
Ball Screw Parameter
Model No. | Dia.(mm) | Lead(mm) | Accuracy Class |
G1605 (100~500mm stoke) | 16 | 05 | C7 |
G1610(600~1000mm stroke) | 16 | 10 | C7 |
Motor Spec
| Model | Step Angle | Flange Size | Body Length | Torque | Current | Resistance | Inductance | Rotor Inertia | Lead |
| (°) | (mm) | L (mm) | ( N.m) | (A) | ( Ω) | ( mH) | (g.cm²) | (No.) | |
| FM5756SFD04 | 1.8 | 57 | 56 | 0.93 | 2.0 | 1.32 | 3.19 | 188 | 4 |

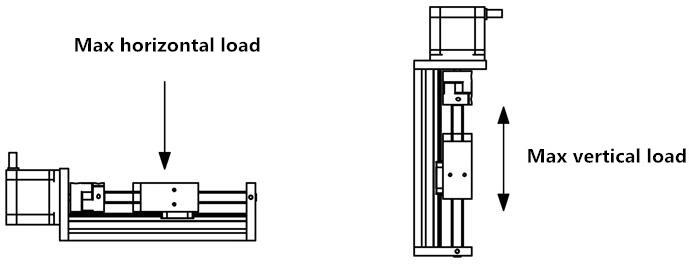

Load/Speed
| Load(kgs) | 100~500mm Stroke | 600~1000mm Stroke | ||||
| 0~10kgs | 10~25kgs | 25~40kgs | 0~10kgs | 10~25kgs | ||
| Max Speed | Horizontally | 140mm/s | 80mm/s | 40mm/s | 100mm/s | 60mm/s |
| Vertically | 100mm/s | 50mm/s | ||||
| Max Loading | Horizontally | 40 | 25 | |||
| Vertically | 10 | |||||
