Specification:
Max Speed | 17000 r/min |
Max RCF | 20050xg |
Max Capacity | 4x250ml(4500rpm) |
Speed Accuracy | ±10 r/min |
Temp Accuracy | ±1℃ |
Temp Range | -20℃~40℃ |
Timer Range | 1~99H59 min/inching |
Noise | ≤60 dB(A) |
Power | AC 220V 50HZ 15A |
Dimension | 600 X750 X420(LxWxH) mm |
Weight | 80 kg |
Rotor Technical Data:
Rotor | Capacity | Max Speed | Max RCF |
NO.1 Fixed-angle Rotor | 12x1.5/2.2ml | 18000rpm | 22500Xg |
NO. 2 Fixed-angle Rotor | 12x5ml | 15000rpm | 18270Xg |
NO. 3 Fixed-angle Rotor | 24x1.5/2.2ml | 14000rpm | 18880Xg |
NO. 4-1 Fixed-angle Rotor | 12x10ml | 13000rpm | 15620Xg |
NO. 4-2Fixed-angle Rotor | 36x1.5ml/2.2ml | ||
NO. 5-1 Fixed-angle Rotor | 6x50ml | 12000rpm | 15970Xg |
NO. 5-2 Fixed-angle Rotor | 48x1.5ml/2.2ml | ||
NO. 6-1 Fixed-angle Rotor | 4x100ml | 10000rpm | 10640Xg |
NO. 6-2 Fixed-angle Rotor | 8x50ml | ||
NO. 7 Fixed-angle Rotor | 6x10ml | 16000rpm | 19070Xg |
NO. 8-1 Fixed-angle Rotor | 8x15ml | 13000rpm | 15620Xg |
NO. 8-2 Fixed-angle Rotor | 6x30ml | ||
No.9 Swing-out ELISA Plate Rotor | 2x3x96 holes | 4000rpm | 1970Xg |
No.10 Swing-out rotor | 4x250ml | 4500rpm | 3720Xg |
According to your needs, various Specifications: of Fixed-angle Rotors can be customized. | |||

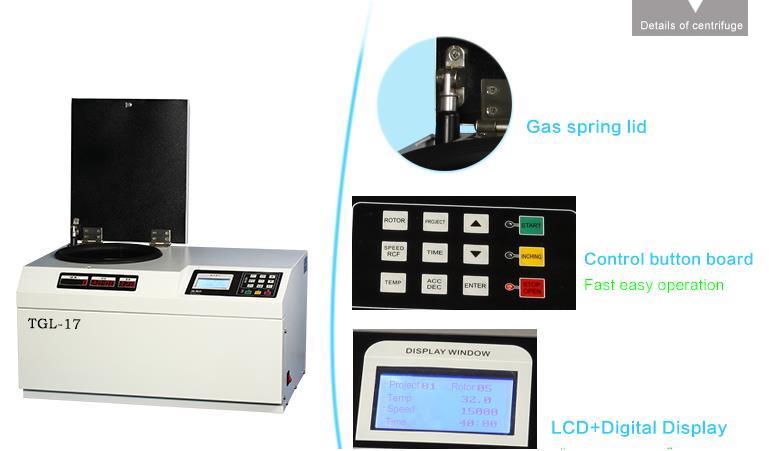

Features& Advantages:
Frequency conversion motor drive,Microcomputer control .
LCD & Digital display.
Automatic rotor recognition to prevent from overspeed.
Electronic lock,Imbalance protection.
40 levels of acceleration and deceleration,12 programs.
Automatic fault diagnosis.
Imported compressor,refrigerating/heating double loop and precise in temperature control.
Programs of RCF can be set up directly.
Adopts Import famous variable frequency controller, control accurately and be durable
Time,Speed ,RCF can be modified during operation.
All- steel body ,three-layer steel for safety.
Be easy to replace the rotor with a special elastic fixed method.
