1,Our Product

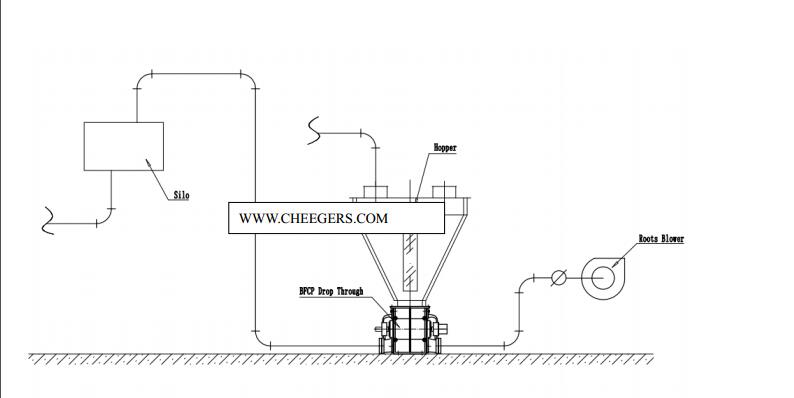

A.Typical Application: Pneumatic Conveying, Blending, Dust Collection, Drying, Weighing, Mixing, Feeding, discharging, Packaging or Bagging. It is usually worked with cyclone, surge bin, dust collector, hopper, silo, roots blower and other pneumatic conveying equipment.
B.Handling Materials:
Our products can be widely used in pneumatic conveying system of flour, bran, starch, grain, feed, sugar, chemical products, plastics powder materials or bulk solid materials in flour mills, food factories, chemical factories, feed mills, rice mills etc.
C.Special Components
Our products include many special equipment, such as: SEW motor, SKF bearing, body and rotor are available in stainless steel, carbon steel, cast-iron, high sealing rubber rings etc.
D.Product Drawing
Type | Inlet and out let | size | |||||||||||||||||
F0 | E0 | Dg | A | B | C | C1 | D | F | F1 | F2 | F | F1 | F2 | G | H | H0 | L | Diameter | |
BFCP-2.5 | 130 | 130 | 45 | 80 | 180 | 225 | 245 | 180 | 210 | 180 | 80 | 210 | 180 | 100 | 470 | 280 | 140 | 455 | 30h7 |
BFCP-5.5 | 200 | 170 | 65 | 150 | 220 | 328 | 300 | 220 | 280 | 250 | 150 | 250 | 220 | 120 | 628 | 340 | 170 | 580 | 40h7 |
BFCP-8.5 | 250 | 250 | 70 | 200 | 300 | 395 | 375 | 250 | 330 | 300 | / | 250 | 330 | / | 770 | 400 | 200 | 630 | 40h7 |
BFCP-13.5 | 270 | 240 | 100 | 220 | 300 | 395 | 365 | 280 | 360 | 330 | 200 | 330 | 300 | 180 | 770 | 435 | 230 | 660 | 40h7 |
BFCP-28 | 350 | 250 | 110 | 330 | 315 | 402 | 480 | 360 | 450 | 415 | 300 | 350 | 315 | 180 | 882 | 550 | 305 | 800 | 55h7 |
BFCP-56 | 410 | 310 | 120 | 390 | 480 | 402 | 545 | 450 | 510 | 475 | 360 | 410 | 375 | 200 | 947 | 640 | 345 | 870 | 55h7 |
BFCP-145 | 560 | 400 | 180 | 540 | 660 | 460 | 730 | 600 | 680 | 635 | 510 | 520 | 475 | 340 | 1190 | 840 | 440 | 1240 | 70h7 |
2,Exported Countries and Main Supply
A.Cheegers has a long term cooperation with Buhler the globle leading enterprise in flour industry.
B.Cheegers products are exported in foreigh countries, such as: Dubai, Serbia, Thailand, Indonesia, Denmark, New Zealand etc, our customers think highly of our products.
3, About Cheegers
A. Brief Introduction
CHEEGERS is rebuilt in 2003 from the revolution of china government factory CHIQI witch built in 1958, every manager and engineer remains in Cheegers, they have expertised in airlock for more than 54 years. Cheegers is a professional supplier of airlocks. We have received ISO9001:2008 QC certification. We also offer all kinds of OEM/ODM services.
Chengdu Cheegers Grain Machinery Manufacture Co., Ltd.
- Phone: +86 028-84200586
- Business Type: Manufacturer
- Location: China
- Main Products: rotary valve,rotary feeder,rotary airlock valve,magnet seperator,two-way valve
- Total Employees:Less than 100 people
- Year Established:
- Export Markets:
- Total Annual Revenue:
