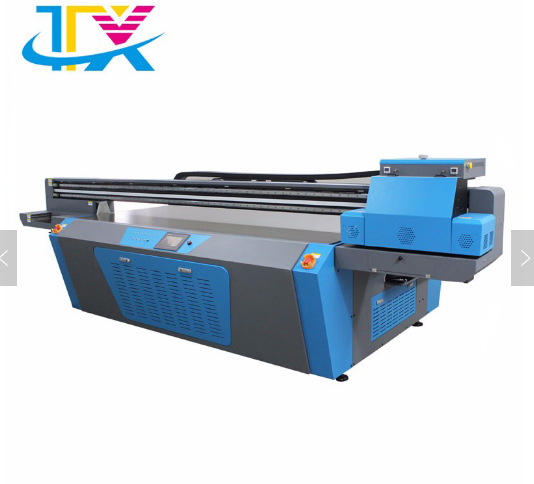

Wood glass metal flatbed printer UV digital printing machine for aluminium sheet
Product Description
Products Parameter
| Printer Parameter | |
| Model Number | TXC2513E |
| Print Head | Ep DX5, 2pcs |
| Print Size | 2500*1300mm |
| Medium Thickness | 100mm(customized) |
| Print Speed | 12m2/h |
| Print Direction | Bi/Uni direction |
| Print Color | CMYK+4W |
| Print Resolution | 2880X1440dpi |
| Plate Type | Flatbed |
| Printer head protection | Intellective automatic detect |
| Printer head maintain | Head clean during/after printing, keep-wet system when idle. |
| Materials to print | Metal, plstic, glass, wood, ceramics, acrylic, leather,etc. |
| Software language | Korean, German, French, Portuguese, Japanese, Spanish, Italian,Finnish,Dutch, English, etc. |
| System requirement | Windows XP/Vista/Win 7/Linus |
| Configuration Parameter | |
| Ink Dot Control | Variable-Size Droplet Technology |
| Ink Type | UV Curable Ink |
| Ink Color | Black, white, yellow, cyan, magenta |
| Ink Volume | 500ml |
| Ink supply system | Continuous Ink Supply System(CISS) |
| UV lamp life time | 50000 hours |
| UV lamp system | 6 Power degree adjustable system |
| UV light wavelength | 390~400mm |
| UV Lamp | LED UV lamps (Water cooling) |
| X, Y-Axis motors | Servo motors control |
| Software | RIP softwre |
| Print Interface | USB2.0; Ethernet |
| Power Requirement | AC220V 50Hz;AC110V 60Hz;200W |
| Apperance parameter | |
| Dimension | 4290*2150*1400mm |
| Packaging Size | 4400*2360*1700mm |
| Packing | Fumigation-Free wooden package with foams |
| Environmental Requirements | Temperature 10~35℃;Humidity 20~80% |
| Gross Weight | 950kg |
Warranty | Two years |
Product Characteristics
Precision ball screw
Fully mute imported precision guide rail
LED cold light source UV curing lamp
Nozzle collision avoidance system
Imported servo motors
Product Description
Products Parameter
| Printer Parameter | |
| Model Number | TXC2513E |
| Print Head | Ep DX5, 2pcs |
| Print Size | 2500*1300mm |
| Medium Thickness | 100mm(customized) |
| Print Speed | 12m2/h |
| Print Direction | Bi/Uni direction |
| Print Color | CMYK+4W |
| Print Resolution | 2880X1440dpi |
| Plate Type | Flatbed |
| Printer head protection | Intellective automatic detect |
| Printer head maintain | Head clean during/after printing, keep-wet system when idle. |
| Materials to print | Metal, plstic, glass, wood, ceramics, acrylic, leather,etc. |
| Software language | Korean, German, French, Portuguese, Japanese, Spanish, Italian,Finnish,Dutch, English, etc. |
| System requirement | Windows XP/Vista/Win 7/Linus |
| Configuration Parameter | |
| Ink Dot Control | Variable-Size Droplet Technology |
| Ink Type | UV Curable Ink |
| Ink Color | Black, white, yellow, cyan, magenta |
| Ink Volume | 500ml |
| Ink supply system | Continuous Ink Supply System(CISS) |
| UV lamp life time | 50000 hours |
| UV lamp system | 6 Power degree adjustable system |
| UV light wavelength | 390~400mm |
| UV Lamp | LED UV lamps (Water cooling) |
| X, Y-Axis motors | Servo motors control |
| Software | RIP softwre |
| Print Interface | USB2.0; Ethernet |
| Power Requirement | AC220V 50Hz;AC110V 60Hz;200W |
| Apperance parameter | |
| Dimension | 4290*2150*1400mm |
| Packaging Size | 4400*2360*1700mm |
| Packing | Fumigation-Free wooden package with foams |
| Environmental Requirements | Temperature 10~35℃;Humidity 20~80% |
| Gross Weight | 950kg |
Warranty | Two years |
Product Characteristics
Precision ball screw
Fully mute imported precision guide rail
LED cold light source UV curing lamp
Nozzle collision avoidance system
Imported servo motors
